Screw-in temperature controlled heating unit 9kW 400V with three separate circuits
Regular price:
Regular price:
product unavailable
add to wish list
Description

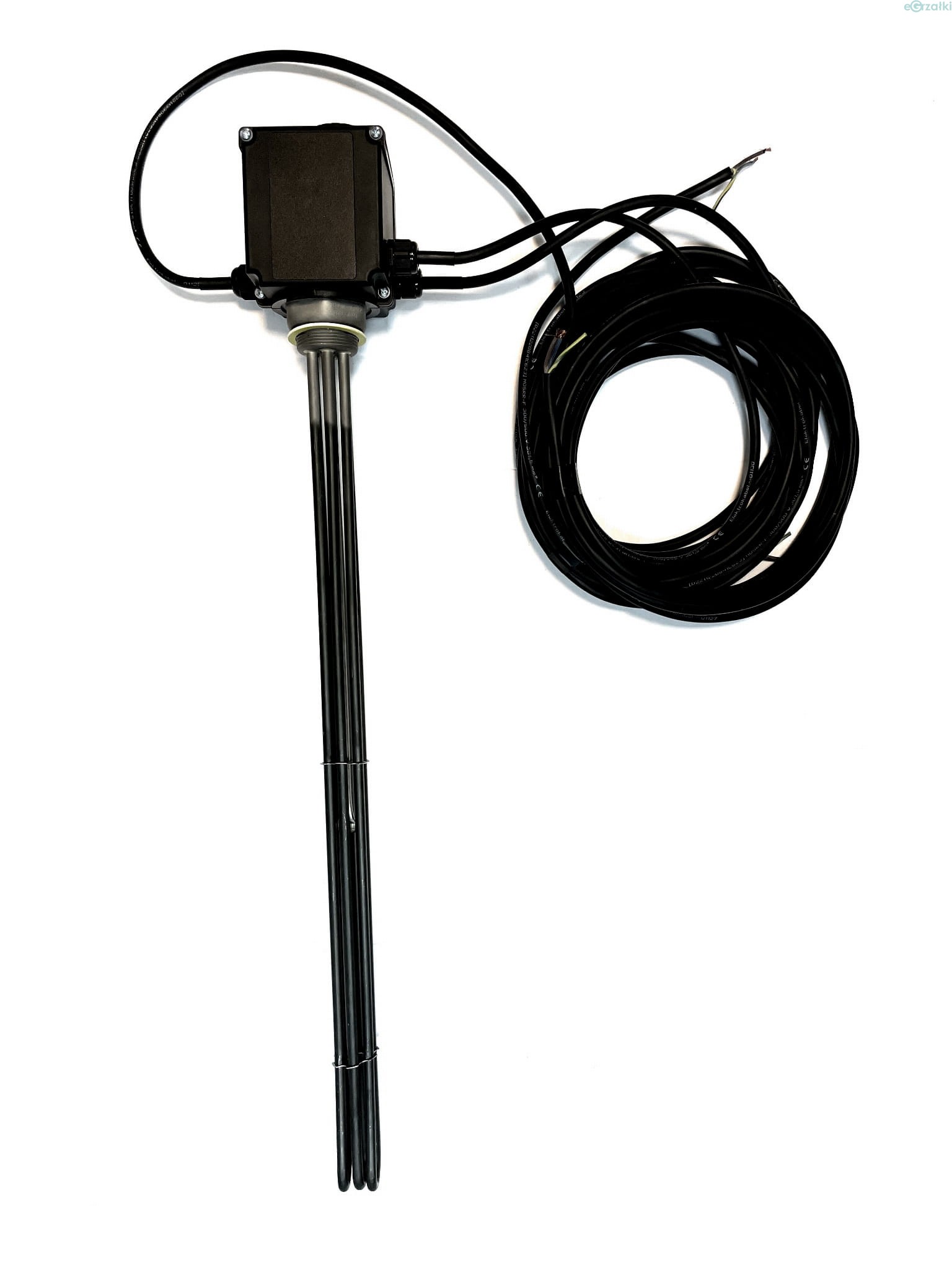

Screw-in heating unit with temperature control 20-75*C 3x3000W 400V with three separate cables (3x5m).
Each wire is led out separately, which makes it possible to connect one, two and three phases separately.

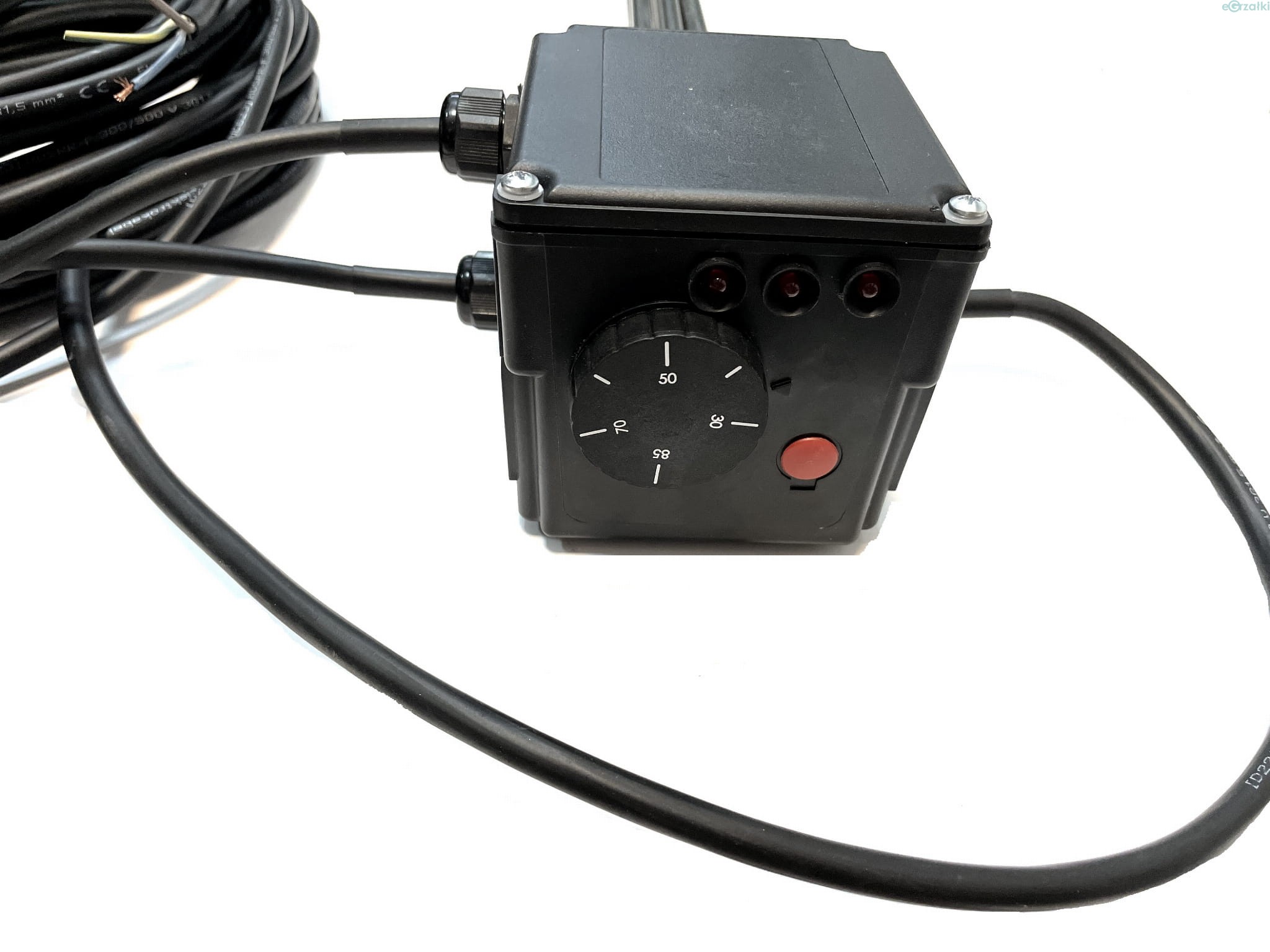

The heater consists of 3 three "U" type heating elements soldered into a stainless/acid-resistant steel plug and a built-in thermostat. The heater has an additional temperature limiter (96*C) and three operating mode indicators.
Heater length 700mm, including a dead zone of 10 cm.
Heat-resistant jacket resistant to high temperatures and aggressive environments.
Technical data
| Power | 9000W |
| Thread | 1 1/2" (6/4") |
| Current voltage | 400V (3x230V) |
| Lenght | 700mm |
| Product Code | WP9-3wires |
| Heater jacket material | stainless steel |
| Destination | Water |
