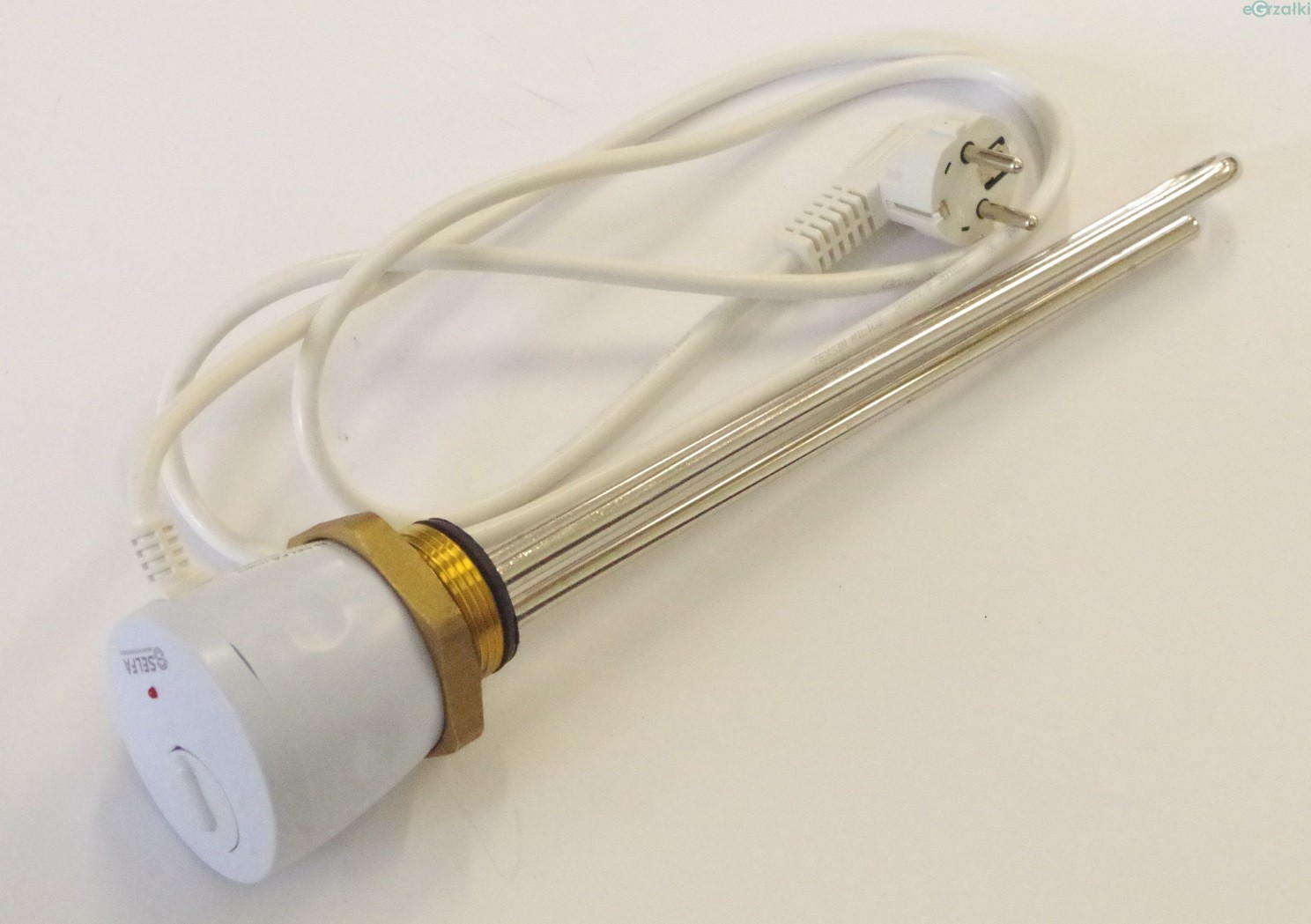

Water heater heater 3000W 230V G 1 1/4" (5/4") L=360 with regulation, stainless steel INCOLOY825
Regular price:
Regular price:
product unavailable
add to wish list
Description
The stainless steel/heat-resistant heater is designed for heating utility water in open and closed tanks. The heater can be installed in the system provided that the heater is always below the water level.
The heater has an additional insulated heating element with a gasket - the heater does not have direct contact with the housing, which has a positive effect on slowing down corrosion processes.
The heating element is powered by single-phase 230V current , they have a thermoregulator with stepless temperature setting and a non-automatic temperature limiter that protects the heater from overheating . The thermoregulator knob and a signal lamp are located in the cover of the heating unit.
The lower part of the housing body is attached to a head with a thread and a hexagonal collar for a wrench, allowing the heater to be screwed into the tank sleeve. The heater must not be screwed in by the box.
The heater is designed primarily for stainless/acid-resistant steel tanks. It can be used in any other type of water tank, e.g. made of carbon steel, galvanized, enameled, plastic, etc.
Temperature control from 5-75°C.
Maximum working pressure in the tank 120 bar.
The heater has a protection class of IP 44.
The set includes:
- assembly and use instructions;
- warranty card;
- rubber seal.
Technical data
| Power | 3000W |
| Thread | 1 1/4" (5/4") |
| Current voltage | 230V |
| Lenght | 360mm |
| Product Code | 50.307.413.1 |
| Heater jacket material | stainless steel IncoloY 825 |
| Destination | Water |
