Stainless steel heater 2000W 230V G 1 1/4" (5/4") L=305 with regulation (Incoloy825)
Regular price:
Regular price:
product unavailable
add to wish list
Description
Stainless steel heater (Incoloy825) in brass plug is designed for heating utility water in open and closed tanks. The heater can be installed in the system provided that the heater is always below the water level .

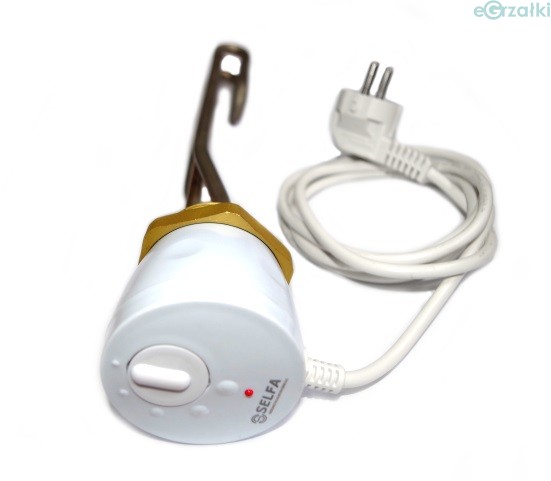

The heating element is powered by single-phase 230V current , they have a thermoregulator with stepless temperature setting and a non-automatic temperature limiter that protects the heater from overheating . The thermoregulator knob and a signal lamp are located in the cover of the heating unit.
The lower part of the housing body is attached to a head with a thread and a hexagonal collar for a wrench, allowing the heater to be screwed into the tank sleeve. The heater must not be screwed in by the box.
Heater designed for stainless steel tanks (made of "acid steel") and for tanks made of ordinary steel (carbon steel).
Temperature control from 5-75°C.
Maximum working pressure in the tank 10 bar.
The heater has a protection class of IP 44.
The set includes:
- assembly and use instructions;
- warranty card;
- rubber seal.
Technical data
| Power | 2000W |
| Thread | 1 1/4" (5/4") |
| Current voltage | 230V |

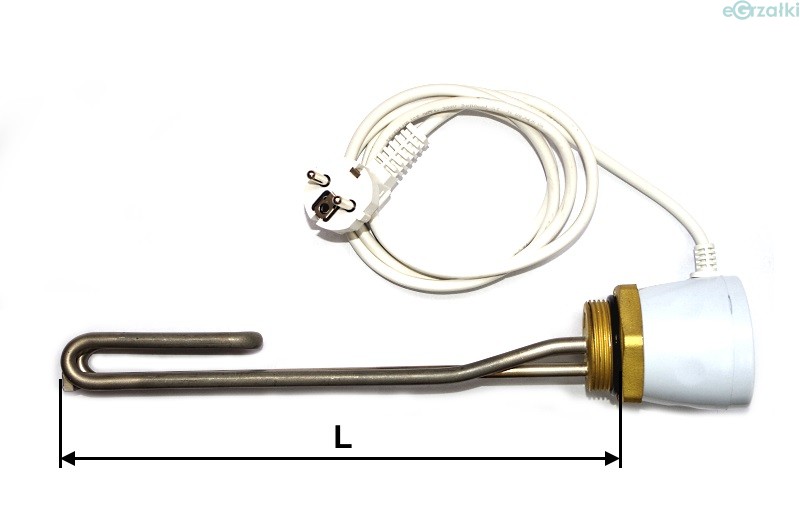

| Lenght | 305mm |
| Product Code | 50.207.413.1 |
| Heater jacket material | stainless steel IncoloY 825 |
| Destination | Water |
